Product Highlight FRUCHTWELT BODENSEE 2024

Washing / Grinding — Healthy Cleanliness

The fruits and vegetables are emptied into the washing container and throroughly cleaned. A food-safe plastic conveyor belt transports them upwards, where they are cleaned with water from spray nozzles and transferred to the fruit grinder.

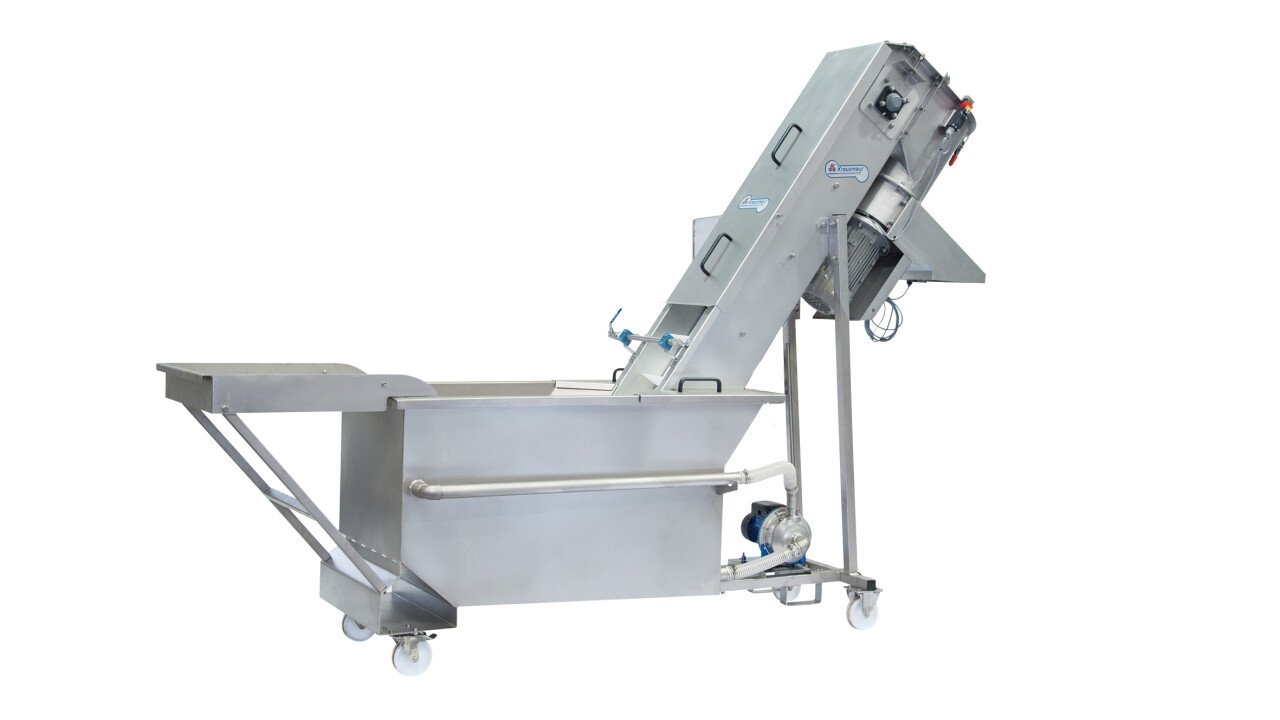

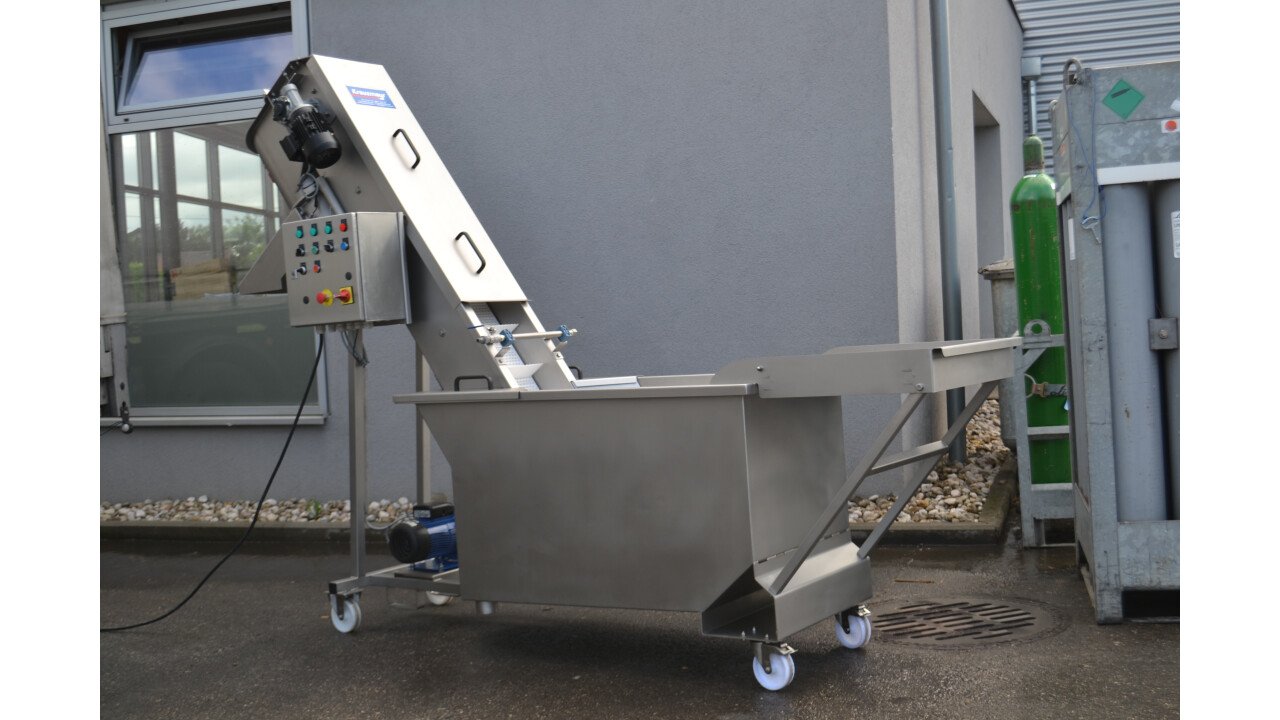

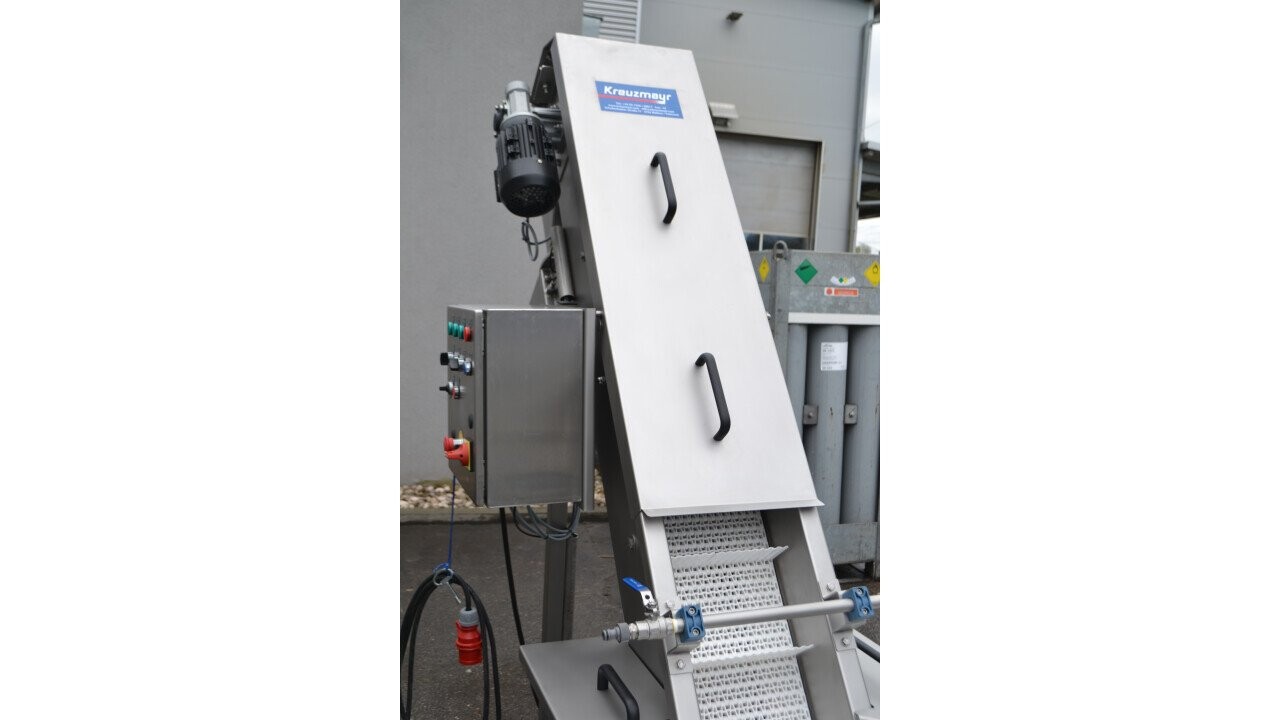

Washing & Grinding Unit Series KWEM, KWEM 2000

In the washing basin the fruit undergoes an intensive cleaning. Afterward it is transferred upwards and is washed again with water spray nozzles. Then it is crushed with the
directly attached grinder and is forwarded into the dosing hopper of the belt press.


  • The machine is made entirely of stainless steel
  • Plastic conveyor belt with continuous speed setting
  • Operation panel on the right or left as per customer requirements
  • Fully automatic operation
  • 3-pole sensor in the mash box
  • Central floor drain for the washing water


Together with the mounted control box and the integrated sorting table, the plug-in complete assembly facilitates relaxed working conditions. A combinable overrun and drain provides a central draining of the wash water. The continuous speed setting guarantees maximum control during the processing.

Easy operation

The washing/grinding unit is delivered ready to use. After the leveling, filling of the washing container and the power- and water connection, the machine is
ready to operate.
